Main Dimensions & Performance Data

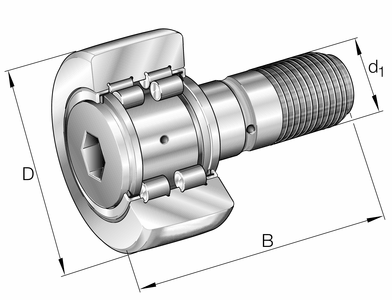

D

 72 mm

B

 80 mm

Cr

 39000 N

Cor

 53000 N

Cur

 7100 N

Reference speed

 2200 rpm

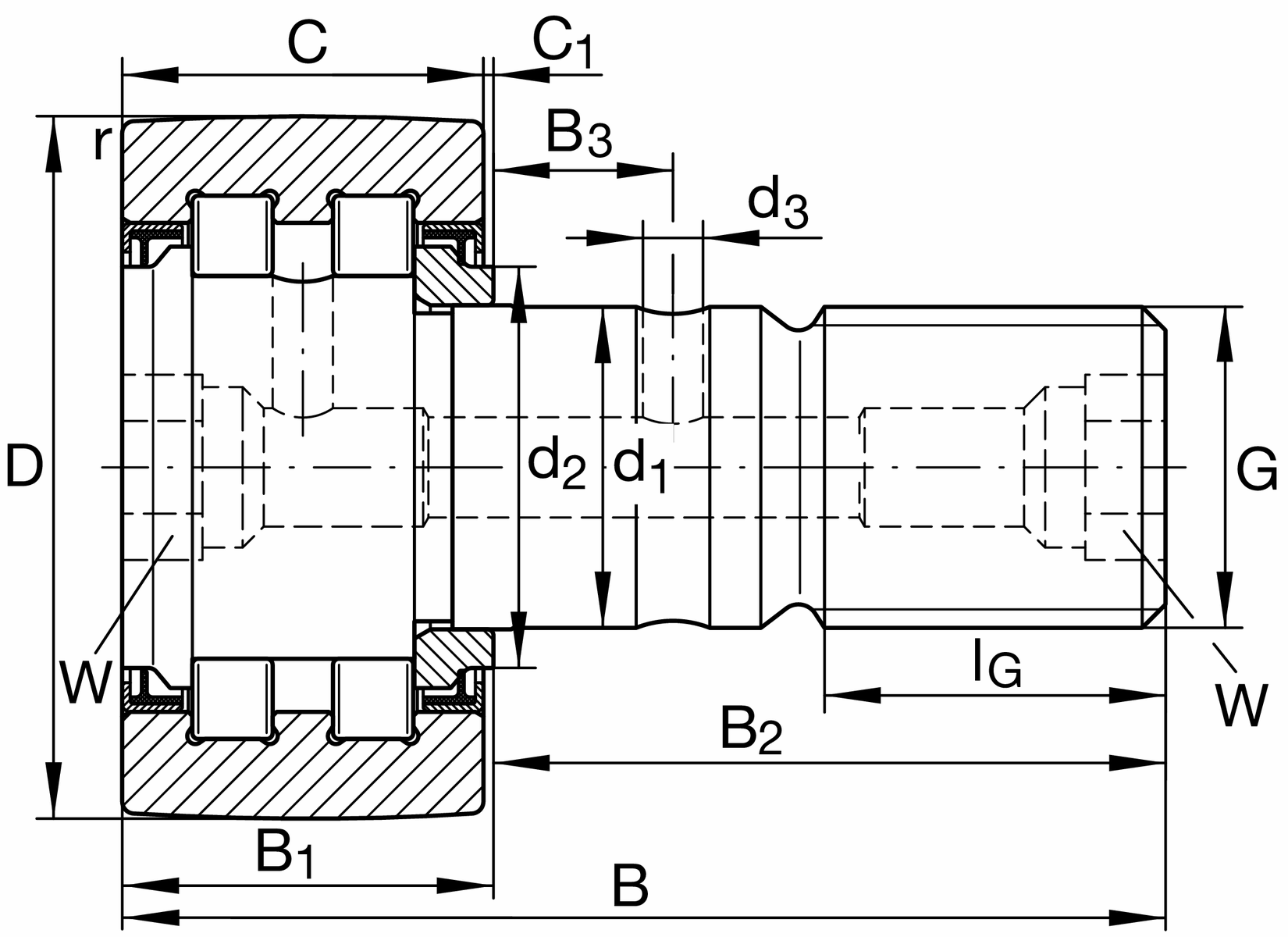

Mounting dimensions

C

 30 mm Outer ring width

d2

 59.8 mm Thrust diameter of thrust washer

rmin

 1.1 mm Minimum chamfer size

r1min

 0.6 mm Minimum chamfer size
